KLST_PANDA is a development based on a STM32H723 Arm® Cortex®-M7 microcontroller (MCU), with 550MHz, 564KB RAM, 1024KB Flash, a Floating-Point Unit (FPU), and an additional 16MB of external memory.

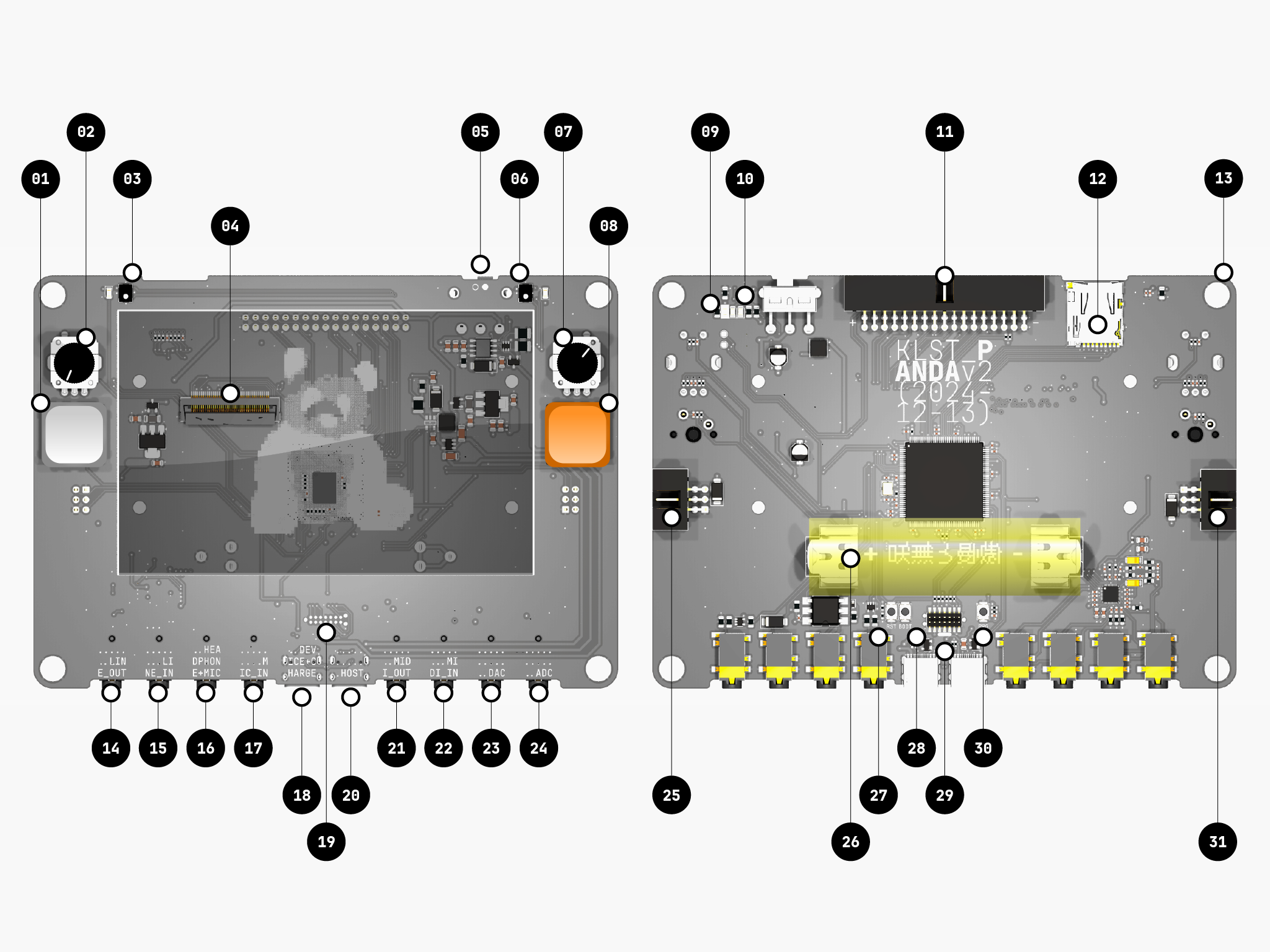

KLST_PANDA--schematics--peripherals

  • ① :: mechanical key ( Cherry MX ) ( left )
  • ② :: rotary encoder ( push button, 24 pulses, no dents, 6mm D-shaft ) ( left 00 )
  • ③ :: MEMS microphone ( left )
  • ④ :: 4.3” TFT display ( 480×272px, 24Bit colors ) and capacitive touch surface
  • ⑤ :: on/off switch
  • ⑥ :: MEMS microphone ( right )
  • ⑦ :: rotary encoder ( push button, 24 pulses, no dents, 6mm D-shaft ) ( right 01 )
  • ⑧ :: mechanical key ( Cherry MX ) ( right )
  • ⑨ :: power LED ( white )
  • ⑩ :: stand-by LED ( white ) + charge LED ( yellow )
  • ⑪ :: GPIO port ( 34-pin IDC connector )
  • ⑫ :: SDCard reader
  • ⑬ :: mounting hole ( 4mm, M4 )
  • ⑭ :: line out
  • ⑮ :: line in
  • ⑯ :: headphones + mic
  • ⑰ :: microphone in
  • ⑱ :: USB-C device + charge connector
  • ⑲ :: programmer interface ( TC2070 )
  • ⑳ :: USB-C host connector
  • ㉑ :: MIDI out ( analog )
  • ㉒ :: MIDI in ( analog )
  • ㉓ :: DAC (0.0V–3.3V)
  • ㉔ :: ADC (0.0V–3.3V)
  • ㉕ :: IDC port ( 6-pin IDC connector ) ( right 01 )
  • ㉖ :: rechargeable battery
  • ㉗ :: reset button (RST)
  • ㉘ :: boot button (BOOT)
  • ㉙ :: programmer interface ( STD14 )
  • ㉚ :: programmer button (PRG)
  • ㉛ :: IDC port ( 6-pin IDC connector ) ( left 00 )
